- HC小巧型安全光柵

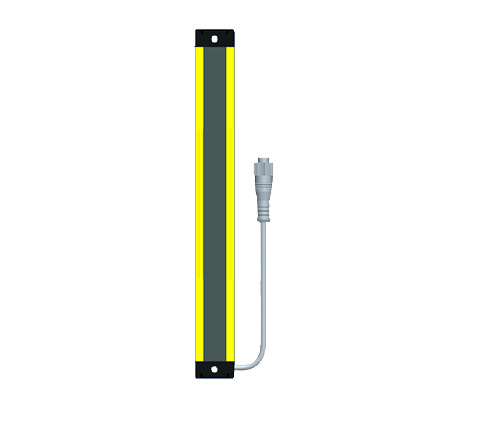

HC小巧型安全光柵Compact safety grating
產品介紹Product introduction:
1.外形小巧,尺寸僅28*13.5mm
2.安裝方式靈活、簡便
3.光點循環自檢,提升設備安全性。
4.具有防水功能。
5.進口老化設備保護產品的質量安全穩定
6.可提供PNP輸出,此時應保證后續控制電路符合安全要求,并提供DC24V電源
7.標準配置:發光器/1支,受光器/1支,信號電纜 1.5m,3.5m各一根;
1. The appearance is small, only 28* 13.5 mm
2. A flexible and easy installation
3. Light circular self-checking, improve equipment safety.
4. Have waterproof function.
5. Imported aging equipment to protect the security and stability of the quality of the product
6. Can provide PNP output, should guarantee the follow-up control circuit meet safety requirements, and provide DC24V power supply
7. The standard configuration: light emitting device / 1 teams, by light / 1, P type controller / 1, the only signal cable series 1.5 m, 3.5 m ea
產品技術參數Product technical parameters:
保護高度 | 60~2000mm(常規) | 工作環境溫度 | -10℃~55℃ |
光軸間距 | 5mm/10mm/20mm/40mm | 截面尺寸 | 18*34mm |
光軸數量 | 4、6、8、10…… | 工作環境濕度 | 溫度20℃時,空氣相對濕度<85% |
工作電壓 | DC10V~30V | 輸出電流 | ≤300mA |
功率 | <5W | 光幕形式 | 對射式 |
響應時間 | <10ms | 抗光干擾 | 10000Lux(入射角I>5°) |
絕緣電阻 | ≥100MΩ | 介電強度 | ACI500V.60S.無擊穿或閃爍 |
輸出方式 | NPN或PNP(常規)/繼電器常開/繼電器常閉 (可根據需求選擇) |

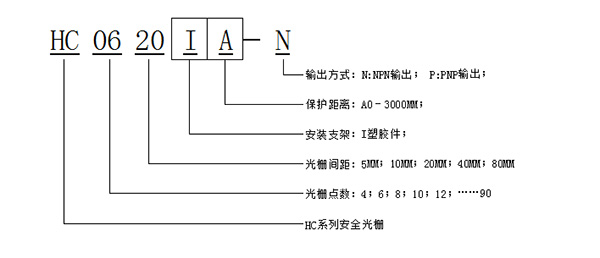

HC系列產品選型規格說明:
HC列產品選型表(單位數為mm) HNG series product selection table (unit mm)
光軸間距(5mm) | 光軸間距(10mm) | |||||||
光束數量 | 保護高度 | 外殼高度 | 規格型號 | 光束數量 | 保護高度 | 外殼高度 | 規格型號 | |
16 | 75 | 152.5 | HC 1605 | 8 | 70 | 140 | HC 0810 | |
24 | 115 | 192.5 | HC 2405 | 12 | 110 | 180 | HC 1210 | |
32 | 155 | 232.5 | HC 3205 | 16 | 150 | 220 | HC 1610 | |
40 | 195 | 272.5 | HC 4005 | 20 | 190 | 260 | HC 2010 | |
48 | 235 | 312.5 | HC 4805 | 24 | 230 | 300 | HC 2410 | |
56 | 275 | 352.5 | HC 5605 | 28 | 270 | 340 | HC 2810 | |
64 | 315 | 392.5 | HC 6405 | 32 | 310 | 380 | HC 3210 | |
72 | 355 | 432.5 | HC 7205 | 36 | 350 | 420 | HC 3610 | |
80 | 395 | 472.5 | HC 8005 | 40 | 390 | 460 | HC 4010 | |
88 | 435 | 512.5 | HC 8805 | 44 | 430 | 500 | HC 4410 | |
96 | 475 | 552.5 | HC 9605 | 48 | 470 | 540 | HC 4810 | |
104 | 515 | 592.5 | HC 10405 | 52 | 510 | 580 | HC 5210 | |
112 | 555 | 632.5 | HC 11205 | 56 | 550 | 620 | HC 5610 | |
120 | 595 | 672.5 | HC 12005 | 60 | 590 | 660 | HC 6010 | |
128 | 635 | 712.5 | HC 12805 | 64 | 630 | 700 | HC 6410 | |
光軸間距(20mm) | 光軸間距(40mm) | |||||||
光束數量 | 保護高度 | 外殼高度 | 規格型號 | 光束數量 | 保護高度 | 外殼高度 | 規格型號 | |
4 | 60 | 140 | HC 0420 | 4 | 120 | 200 | HC 0440 | |
6 | 100 | 180 | HC 0620 | 6 | 200 | 280 | HC 0640 | |
8 | 140 | 220 | HC 0820 | 8 | 280 | 360 | HC 0840 | |
10 | 180 | 260 | HC 1020 | 10 | 360 | 440 | HC 1040 | |
12 | 220 | 300 | HC 1220 | 12 | 440 | 520 | HC 1240 | |
14 | 260 | 340 | HC 1420 | 14 | 520 | 600 | HC 1440 | |
16 | 300 | 380 | HC 1620 | 16 | 600 | 680 | HC 1640 | |
18 | 340 | 420 | HC 1820 | 18 | 680 | 760 | HC 1840 | |
20 | 380 | 460 | HC 2020 | 20 | 760 | 840 | HC 2040 | |
22 | 420 | 500 | HC 2220 | 22 | 840 | 920 | HC 2240 | |
24 | 460 | 540 | HC 2420 | 24 | 920 | 1000 | HC 2440 | |
26 | 500 | 580 | HC 2620 | 26 | 1000 | 1080 | HC 2640 | |
28 | 540 | 620 | HC 2820 | 28 | 1080 | 1160 | HC 2840 | |
30 | 580 | 660 | HC 3020 | 30 | 1160 | 1240 | HC 3040 | |
32 | 620 | 700 | HC 3220 | 32 | 1240 | 1320 | HC 3240 | |

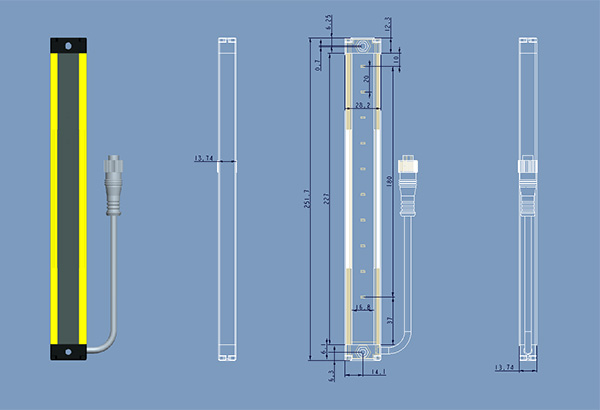

HC尺寸圖
